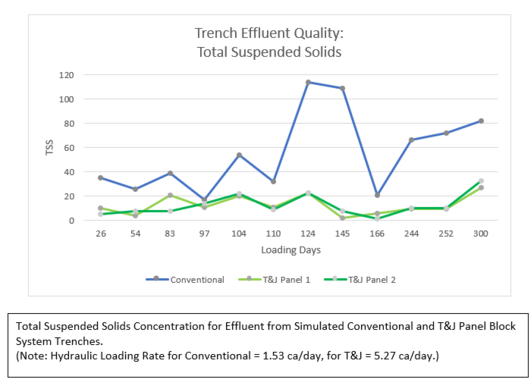

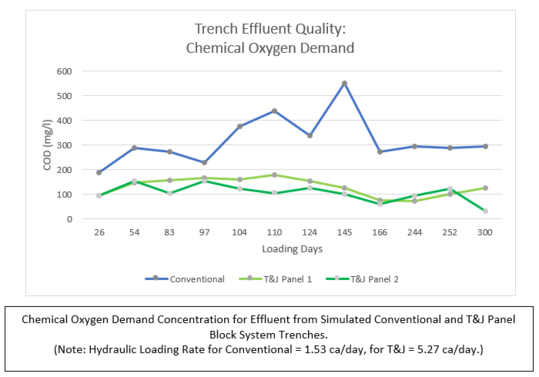

In a side by side test, both total suspended solids and chemical oxygen demanded were reduced with the Panel System. The panels were loaded at 3.4 times that of conventional systems.
Advantages of Using low-pressure Panels
- Uniform distribution of the effluent
- Elimination of localized overloading
- Works with 2-4 feet of pressure head
- Dosing and resting cycles
- Placing of the effluent into the sidewall, higher in the soil profile, where the more porous soils are found
- The aerobic action of the T & J Panel’s design
- The filtration of the effluent through the T & J Panel System and its sand backfill
